16MM Manual 45/92 Gear, Tongue @ 29.65", 1" D/B, 36" HH
by HOPPE
Original price
$179.99
-
Original price
$179.99
Original price
$179.99
$179.99
-
$179.99
Current price
$179.99
Hoppe 8778163 HL S9000 MP Manual Gear, Tongue Version with 16mm Faceplate

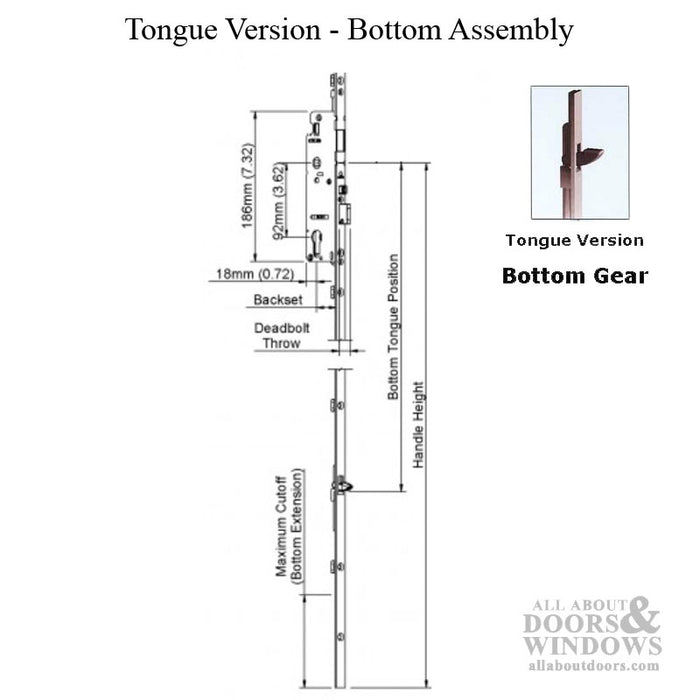

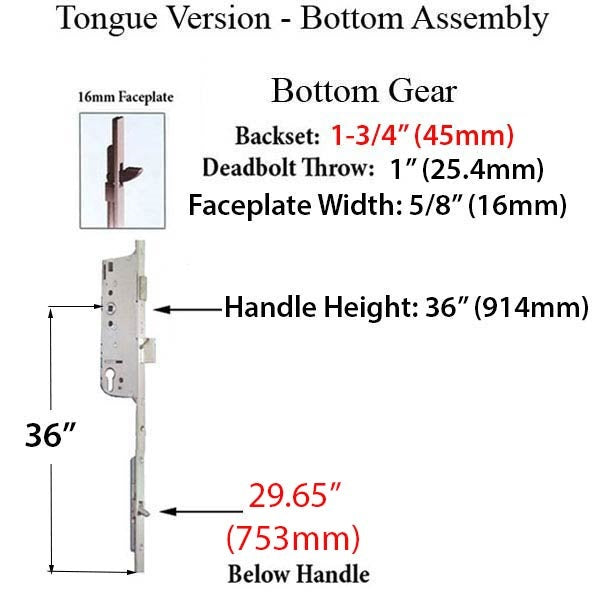

Tongue Version, Multi-point Lock bottom gear for Active Door - Deadbolt and 1 tongue
When used with top extension, this Multi-point Lock has 3 locking points: 1 Deadbolt, 2 Tongues.

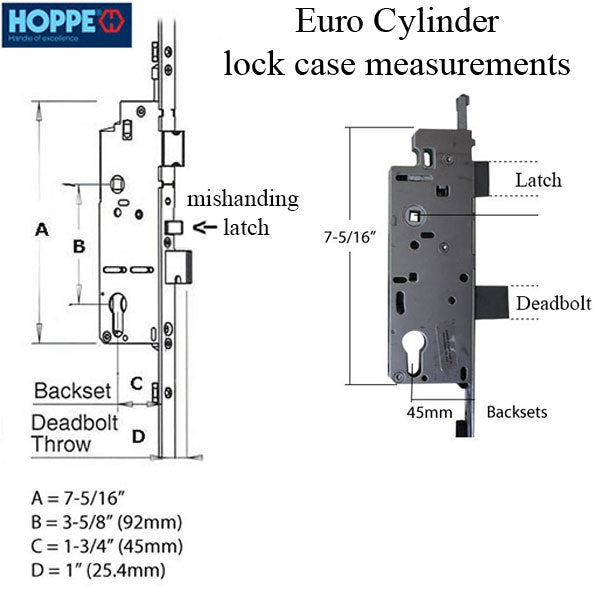

Faceplate: Stainless Steel .63 inch (16mm) width
Backset: 1.77 inch (45mm)
Deadbolt throw: 1.0 inch (25.4mm)
Handle Height: 36.00 inch (914mm)
Bottom Tongue Position: 29.65 inches (753mm)
Maximum Cutoff: 1.18 inches (30mm)
Tongue Version, Multi-point Lock bottom gear for Active Door - Deadbolt and 1 tongue
When used with top extension, this Multi-point Lock has 3 locking points: 1 Deadbolt, 2 Tongues.
Faceplate: Stainless Steel .63 inch (16mm) width
Backset: 1.77 inch (45mm)
Deadbolt throw: 1.0 inch (25.4mm)
Handle Height: 36.00 inch (914mm)
Bottom Tongue Position: 29.65 inches (753mm)
Maximum Cutoff: 1.18 inches (30mm)
