Atrium 16 mm manual tongue version multipoint lock replacement kit of old style GU Tripact locks.
This is a 3 point locking system that features two tongue latches and a deadbolt.
All three locking points are engaged by lifting the handle.
This is NOT a direct replacement for the Atrium door lock. It requires minor modifications. See additional pictures of Atrium old-style and Atrium replacement lock comparisons.

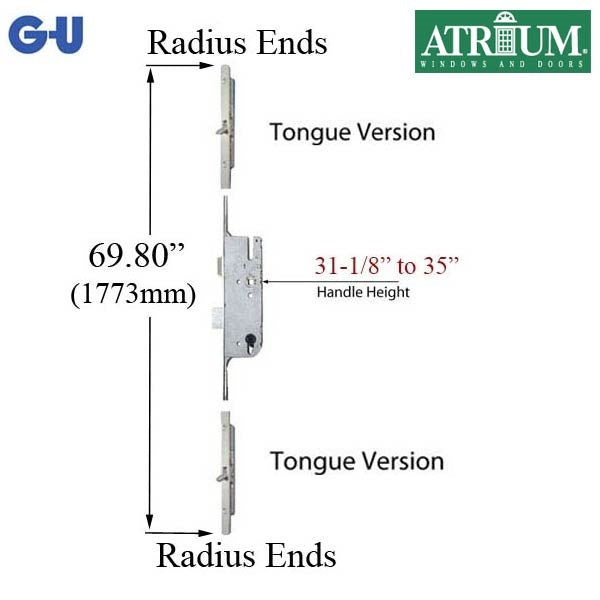

Replacement Locks Measurements:
Overall Length: 69-3/4 Inch
Backset: 45 mm (1-3/4 inch)
Handle Height: 31-1/8 inch - 35 inch
Handle Spacing (PZ): 92 mm
Top Tongue Position: 32-5/8 inch above handle
Bottom Tongue Position: 26-3/4 inch below handle
Faceplate width: 16mm (5/8 inch)
Ends: Radius / Rounded
