Hoppe Multipoint Lock 16MM MANUAL Gear, 45/92, Roundbolt At 26.30", 1" Deadbolt Throw

Hoppe HLS9000 Multi-Point Lock Hardware, Manual Version, Bottom Gear Only

Faceplate Width: 5/8" (16mm),

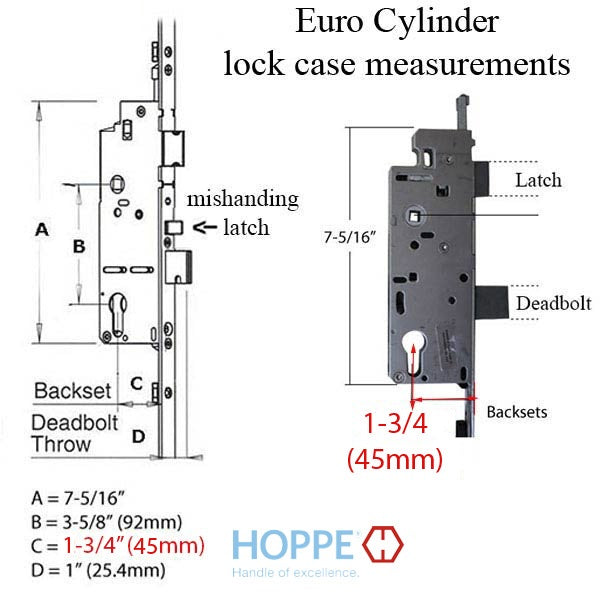

Backset:1.77" (45mm),
Deadbolt Throw: 1" (25.4mm),

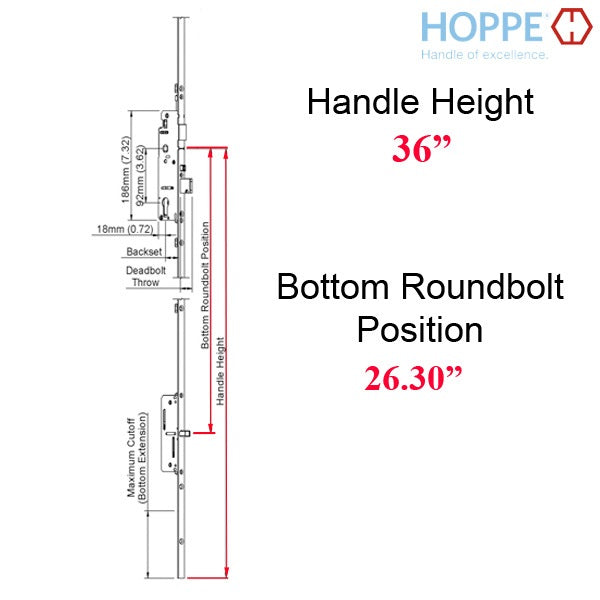

Handle Height: 36" (914mm,
Bottom Roundbolt Position: 26.30" (668mm),
Maximum Cutoff: 5.51" (140mm),
