Hoppe Multipoint Lock Hoppe 16mm Manual 70/92 Gear, Tongue at 29.65", 1" D/B, 36" HH

Hoppe 16mm Manual 70/92 Gear, Tongue at 29.65", 1" D/B, 36" HH

Hoppe HLS9000 16mm Manual 70/92 Gear, Tongue at 29.65", 1" Deadbolt, 36" Handle Height with Tongue Bottom Extension (Tongue Version, Multi-point Lock Bottom gear to be used with top gear)

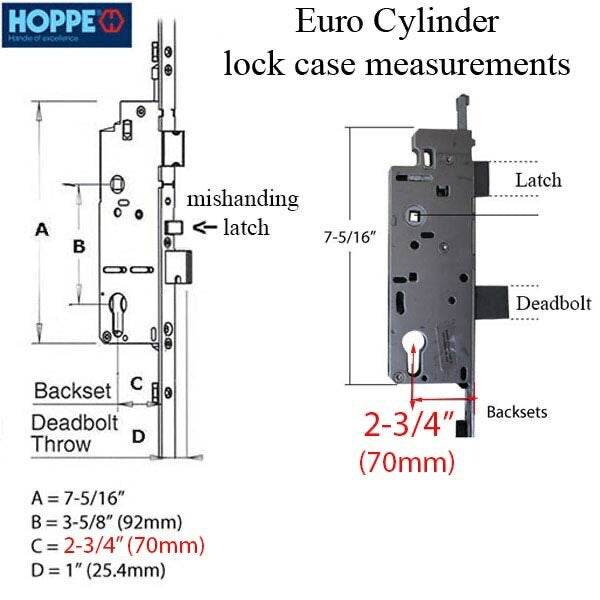

Backset: 70mm (2-3/4 inches)
Deadbolt Throw: 25.4mm (1 inch)

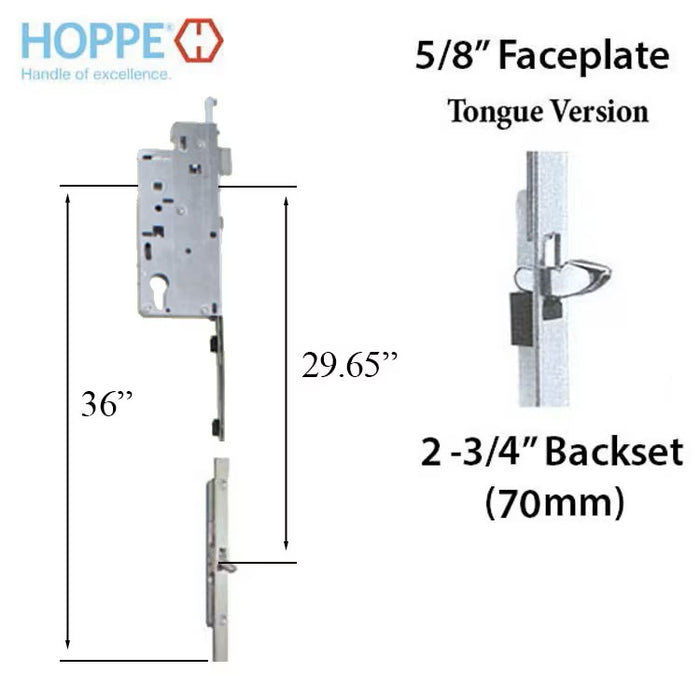

Handle Height: 914mm (36 inches)
Bottom tongue Position: 753mm (29.65 inches)
Maximum Cutoff: 30mm (1.18 inches)
Number of Screws: 5
Faceplate Width: 16mm (.63 inches)
